MuleSoft Architecture: Tutorial, Best Practices & Examples

MuleSoft architecture provides a robust framework for seamless system, application, and data integration using APIs. It follows an API-led connectivity approach, organizing APIs into three layers—System, Process, and Experience—to promote reusability, scalability, and flexibility. It is built on a secure, scalable, cloud-native infrastructure like CloudHub.

MuleSoft supports hybrid integrations across on-premises and cloud environments. Key architectural practices include modular design, comprehensive error handling, performance optimization, and strong security. This architecture empowers organizations to accelerate digital transformation by enabling efficient, secure, and scalable integrations across diverse ecosystems.

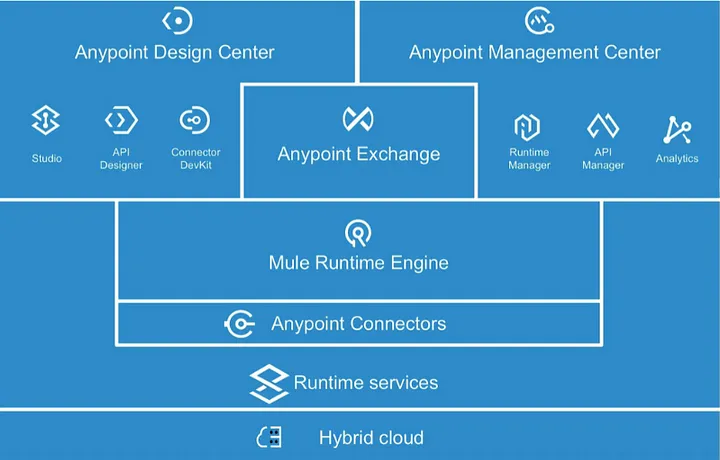

This article explains MuleSoft architecture and highlights its key components. MuleSoft includes a Design Center for API design, a Management Center for governance, a Runtime Engine for executing integrations, Connectors for connecting to various services, and a Partner Manager for managing third-party integrations. The lightweight Runtime Engine efficiently handles data transformation and routing in cloud, on-premises, and hybrid scenarios, while the API Gateway enhances security.

MuleSoft's Anypoint Platform has a robust, flexible architecture supporting a highly modular design. The screenshot below depicts the architectural diagram of MuleSoft’s Anypoint Platform.

‍

Summary of key MuleSoft architecture concepts

Overview of Anypoint Platform Components

The table below covers the core components of the Anypoint Platform.

MuleSoft Architectural Patterns

MuleSoft provides a variety of architectural patterns to help organizations design scalable, maintainable, and efficient integration solutions. These patterns ensure that systems and services are connected to meet business needs while promoting flexibility, reusability, and simplicity.

Here are a few of the most well-known patterns.

API-led connectivity: Empowering developers and architects

API-led connectivity is a strategic integration approach that centers on using APIs to connect applications, data, and devices. It’s one of MuleSoft's core principles and promotes building reusable, scalable, and manageable API layers to streamline integration efforts.

These are the three API layers in API-led connectivity:

• Experience API: Tailored APIs designed to meet the needs of specific user interfaces or client applications. Provide flexibility for delivering personalized experiences without altering core systems.
• Process API: Orchestrate and aggregate data from multiple System APIs. Enable business logic and processes to be executed seamlessly across various systems.
• System API: This directly connects to underlying systems like databases or SaaS platforms, exposing their data and functionality. It simplifies and standardizes access to core systems, reducing developers' complexity.

The screenshot below depicts API-led connectivity in MuleSoft.

MuleSoft Reliable Messaging Pattern

This pattern ensures data delivery across systems, even in network disruptions, system failures, or application errors. This pattern is critical for maintaining data integrity and consistency in enterprise integrations. Key elements of the reliability pattern include:

• Asynchronous messaging: Asynchronous messaging enables applications to decouple from one another to improve performance, scalability, and reliability. This article will review the most common messaging patterns and why and when to use them.
• Transactional processing: Transactional processing ensures that a series of related operations are treated as a single unit, meaning they succeed or fail together. This prevents issues like incomplete data updates or inconsistencies. For example, in an order management system, transactional processing ensures that payment, inventory update, and order confirmation are all completed or rolled back if any step fails.
• Error handling and retry mechanisms: Error handling and retry mechanisms ensure that failed operations are automatically retried based on predefined policies, such as time intervals or retry limits. If retries fail, the message can be moved to a dead letter queue for manual intervention. This ensures that errors are managed gracefully and no critical data is lost during integration processes.

The screenshot below shows the publisher sending a limited number of messages to the queue, which theconsumer can then consume.

‍

‍

Data Integration Pattern: Bi-directional sync

Bidirectional sync is a data integration pattern in which data flows between two systems in both directions, keeping them continuously updated. In MuleSoft architecture, this is typically implemented using APIs, messaging queues, or connectors to ensure real-time or near-real-time synchronization.

For example, in a CRM and ERP integration, when a customer's address is updated in the CRM, the change is reflected in the ERP, and vice versa. To avoid infinite loops or conflicts, MuleSoft uses techniques like change tracking, timestamps, or watermarking. This pattern ensures data consistency across platforms while maintaining system autonomy.

An AI coding agent such as CurieTech AI makes it easier to write high-quality integrations and data transformations in MuleSoft, including integrations that follow a bi-directional sync data integration pattern.

Below is such an example build using CurieTech AI's integration generator tool. We prompt the tool with a certain input, and it generates a flow as an output.

For instance, we prompt the tool with the input as shown in the below screenshot.

Once we submit, it generates the below flow summary with the source code (xml files).

‍

‍
After importing the XML files in Anypoint Studio, as shown in the screenshot below, it creates two flows: mysql-to-salesforce-flow and salesforce-to-mysql-flow, accommodating bidirectional sync as prompted.

Event-driven architecture

In this pattern, systems communicate through events, allowing for asynchronous and real-time processing. Event-driven architectures provide flexibility and loose coupling, enabling scalable and reactive integrations. This pattern is handy for scenarios involving real-time data processing and high-volume systems.

For instance, MuleSoft's Salesforce Connector in Anypoint Studio allows developers to interact with Salesforce platform events and change data capture (CDC). These capabilities enable applications to respond to changes in Salesforce objects or custom events. Using the Salesforce Connector, developers can subscribe to platform events or CDC streams via the replay channel operation, specifying which events or objects to monitor. This ensures the reliable capture of changes, even across application restarts, by leveraging replay options to avoid missed events.

The screenshot below depicts the event-driven architecture in MuleSoft.

For example, a company using Salesforce to track customer accounts can use MuleSoft to synchronize updates with an on-premises SQL database. Developers can subscribe to account update events via the Salesforce Connector, process the event payload, and synchronize changes to the database. This event-driven approach eliminates the need for custom triggers or polling, improving efficiency and scalability. MuleSoft's wide range of connectors simplifies integration with external APIs, databases, or third-party platforms, reducing time-to-market and operational overhead for real-time applications.

AsyncAPI integration

MuleSoft's AsyncAPI is a specification that helps design and document asynchronous APIs, which are often used in event-driven architectures. It enables systems to communicate through events, where one system emits an event, and others listen for and react to it. AsyncAPI allows us to define the structure of these events, including message formats and communication protocols, ensuring that different systems can seamlessly interact without waiting for an immediate response. Event-driven architecture plays a key role by making communication more scalable, flexible, and decoupled, helping build reactive and responsive systems.

The screenshot below shows an example of an event-driven application built within MuleSoft IDE: Anypoint Code Builder or Anypoint Studio.

DataWeave:  The power of data transformation in MuleSoft

DataWeave is an integral part of MuleSoft that helps accelerate its data transformation and integration capabilities.

Here are the examples of DataWeave transformations.

Transforming JSON to XML:

%dw 2.0
 output application/xml
 ---
 {
 	customer: {
     	name: payload.name,
     	email: payload.email
 	}
 }

‍

Flattening nested JSON structures:

%dw 2.0
 output application/json
 ---
 payload.users map ((user) -> {
 	id: user.id,
 	fullName: (user.firstName ++ ' ' ++ user.lastName)
 })

‍

Filtering and mapping JSON arrays:

%dw 2.0
 output application/json
 ---
 payload.orders filter ((order) -> order.status == 'shipped') map ((order) -> order.id)

‍

Using AI tools for generating DataWeave expressions

The screenshot below shows how to use CurieTech AI's Dataweave Generator Agent, an AI tool for generating DWL expressions that we discussed earlier in the article, to create a DataWeave script with map operators. First, select the sample input format: converting a JSON record into a JSON record, XML, etc. Next, provide valid JSON input and output in the Sample Input Data section. Also, we can pass notes in the Notes section to add specific instructions. Once we have done this, click Submit, and the system will create a DataWeave expression using the Map operator.

Deployment models

MuleSoft offers multiple deployment models, allowing organizations to choose the best architecture for their integration needs, balancing control, scalability, and flexibility. Here are the different deployment models available in MuleSoft:

• CloudHub deployment: This deployment model is a fully managed platform-as-a-service (PaaS) offering hosted on Anypoint Platform and ideal for rapid development and scalable cloud-native applications. Its architectural components consist of automatic worker management, built-in load balancing, global worker cloud infrastructure, and seamless horizontal scaling.
• Hybrid deployment: This model combines cloud and on-premises infrastructure to support complex enterprise integration scenarios and enable secure connectivity between cloud and local systems. Its architectural components include a lightweight Mule runtime engine, secure connectivity through Anypoint Virtual Private Cloud (VPC), and a centralized management console.
• Standalone deployment: This self-managed runtime environment with maximum flexibility and control suits specific compliance or security requirements. Its architectural components consist of manual runtime configuration, direct server deployment, and comprehensive performance tuning options.
• Container-based deployment: This deployment model is a microservices-oriented architecture with Docker and Kubernetes compatibility, dynamic scaling, and resource optimization. Its architectural components consist of containerized Mule applications, orchestration through Kubernetes, and immutable infrastructure patterns.

Comparative analysis

CloudHub: Versions 1.0 and 2.0

Here are a few key differences between CloudHub 1.0 and CloudHub 2.0.

Networking: Transit Gateway attachments

Transit Gateway attachments are a modern networking solution that replaces the traditional VPC peering model. This approach enhances scalability, simplifies network management, and aligns with multi-cloud or hybrid-cloud strategies. It offers a centralized networking hub that connects multiple VPCs, private spaces, and on-premises systems via a single scalable resource.

Here are some of the benefits of Transit Gateway attachments:

• Simplified networking: Unlike VPC peering, which requires complex configurations for direct connections between each VPC, Transit Gateway allows a hub-and-spoke model.
• Enhanced scalability: Transit Gateways support connections across numerous VPCs and private spaces, making them ideal for enterprises with extensive, distributed environments.
• Centralized management: Network routes and policies can be managed centrally through the Transit Gateway, improving operational efficiency.
• Support for hybrid environments: Transit Gateway attachments integrate cloud-based workloads with on-premises systems via VPN or Direct Connect, offering flexibility for hybrid deployments.
• Improved security: Routing policies and granular access controls can be applied at the Transit Gateway level, ensuring that data flows only where intended.

The screenshot below explains Cross-cloud connectivity with the help of the Transit Gateway of MuleSoft’s Anypoint Platform.

High availability and scalability

MuleSoft architecture is built to support a resilient infrastructure to withstand the stresses of modern enterprise workloads. This section will cover the clustering strategies implemented by the platform.

The screenshot below explains the high availability structure provided by load balancing and a failover mechanism. This provides high availability, zero message loss, and high performance.

Clustering strategies

The Cluster Management Layer in MuleSoft ensures high availability and efficient workload distribution across multiple nodes. The primary cluster node is the central coordinator, managing configurations, scheduling tasks, and handling failover mechanisms. Secondary cluster nodes participate in processing workloads, synchronizing with the primary node to ensure consistency and redundancy.

If the primary node fails, a secondary node is promoted to take over, maintaining system stability. Cluster orchestration automates node coordination, workload balancing, and failover handling using containerization tools like Kubernetes in Runtime Fabric or CloudHub workers. This architecture enhances fault tolerance, ensuring seamless processing even in distributed environments.

The screenshot below depicts all the nodes in a cluster share memory as illustrated below:

Load balancing mechanism

The load-balancing mechanism distributes incoming traffic across multiple instances of a service or application to ensure better performance, reliability, and scalability. Instead of sending all requests to just one server or instance, load balancing helps spread the requests evenly across several servers or resources. This way, no single server gets overwhelmed, and the system can handle more traffic without slowing down.

The screenshot below depicts the shared load balancer between customers that ensures platform stability.

Failover mechanism

The failover mechanism in MuleSoft is a design approach that ensures a system remains available and operational even if one part fails. Simply put, it’s like having a backup plan if something goes wrong. In this arrangement, an admin sets up multiple instances or servers to handle requests. If one instance or server goes down, the system automatically redirects the traffic to another working instance, so users don’t experience any interruptions. This helps improve the system's reliability and ensures minimal downtime, keeping the application running smoothly even when there are issues with some components.

The screenshot below shows a load-balanced, single-clustered environment with multiple Mule instances. This setup ensures high availability by automatically redirecting traffic to another instance if one fails.

Anypoint Partner Manager

Anypoint Partner Manager acts like a bridge between a user and its partners’ systems. It allows us to onboard new partners quickly, manage their access to our APIs, track their usage, and ensure that all interactions are secure and compliant. It helps us handle partner relationships in a structured way, providing that the correct data and services are shared seamlessly.

The screenshot below depicts the Partner Manager of MuleSoft’s Anypoint Platform

Relevance to MuleSoft architecture

• Integrated B2B solution
• Alignment with API-led connectivity
• Enhanced governance and security
• Dynamic partner onboarding
• Real-time monitoring and analytics
• Event-driven architecture support
• Scalability and cloud-native deployment

Key use cases

• Retail: Integrating with suppliers for inventory management and order processing
• Logistics: Enabling real-time shipment tracking through standardized data exchanges
• Healthcare: Managing HIPAA-compliant communications between providers and insurers

Best practices

Here are a few practices to be considered while designing an integration in MuleSoft.

Set clear objectives

Translate business requirements into well-defined technical specifications to ensure that organizational goals are aligned. Then establish measurable key performance indicators (KPIs) to track performance and success over time. Additionally, collaborate by ensuring alignment among cross-functional stakeholders, enabling seamless communication and coordinated efforts throughout the integration lifecycle.

Use the API-led connectivity model

The API-led connectivity model promotes the implementation of a three-layer API architecture, which provides a structured and scalable approach to integration. This model involves designing APIs with clear, singular responsibilities to maintain simplicity and clarity in functionality. Ensuring loose coupling between components, the architecture remains flexible and adaptable to changing business needs. This approach enhances reusability, accelerates development, and supports seamless integration across diverse systems and applications.

Use modular and reusable components

Using modular and reusable components involves creating granular, single-responsibility components that are easy to maintain and extend. By developing standardized connector libraries, domain-specific utility functions, and abstract integration templates, organizations can build a robust foundation for their integrations. These reusable components maximize horizontal reusability across projects, reducing redundancy, accelerating development, and ensuring consistency in integration patterns.

Implement comprehensive error handling

Implementing comprehensive error handling is crucial for building resilient and maintainable MuleSoft integrations. This involves developing a robust error management framework to handle various failure scenarios effectively. By implementing categorized error handling, errors can be systematically classified and addressed based on severity and origin. Additionally, incorporating retry mechanisms and circuit breaker patterns helps maintain system stability by preventing cascading failures. Ensuring comprehensive logging and traceability further aids in quick issue identification, root cause analysis, and proactive system monitoring.

Performance optimization

Performance optimization is critical to MuleSoft architecture to ensure efficient and scalable integrations. This involves implementing multi-level caching strategies to reduce latency and improve response times. Optimizing message processing pipelines helps streamline data flow while minimizing unnecessary transformations and enhances processing efficiency. Utilizing distributed cache architectures supports scalability across multiple nodes, and applying lazy loading techniques ensures resources are loaded only when needed, thereby improving overall system performance.

Security implementation

Security implementation is a fundamental component of MuleSoft architecture to protect sensitive data and maintain system integrity. Adopting a zero-trust security model ensures access is continuously verified, regardless of the user's location or network. This involves implementing multi-factor authentication (MFA) to add a layer of protection and role-based access control (RBAC) to restrict access based on user roles and responsibilities. End-to-end encryption safeguards data during transit and at rest, while secure communication channels prevent unauthorized access. Regular security assessments help identify vulnerabilities and maintain a robust, compliant security posture.

Documentation and knowledge management

Adequate documentation and knowledge management are essential for maintaining clarity and consistency in MuleSoft architecture. This involves creating architectural documentation that evolves alongside the system, ensuring it remains accurate and relevant. Leveraging automated documentation generation streamlines the process, reducing manual effort and minimizing errors. Maintaining precise API contract specifications ensures clear communication between teams and external stakeholders. Additionally, utilizing tools like Swagger and Confluence facilitates easy access to documentation, promoting better collaboration and knowledge sharing across the organization.

Continuous integration and deployment

Continuous integration and deployment (CI/CD) is a crucial practice in MuleSoft architecture to ensure reliable, efficient, and consistent application delivery. This involves developing comprehensive CI/CD pipelines that automate the integration, testing, and deployment processes. Implementing automated testing across different levels—unit, integration, and performance—helps identify and resolve issues early in the development cycle. Automated rollback mechanisms provide a safety net by swiftly reverting to a stable state if deployments fail. Additionally, real-time performance tracking ensures continuous monitoring and optimization, contributing to a more resilient and high-performing integration ecosystem.

The screenshot below depicts the Anypoint Platform components recommended for architecture design.

Ensuring Best Practices with an AI tool

CurieTech AI–Code Insight Agent is an AI tool that enhances MuleSoft development by providing intelligent code analysis and insights that ensure best practices throughout the project or across all repos. It includes Single Repo Code Lens, which offers real-time visibility and navigation within a single repository; Multi Repo Code Lens, which extends this capability across multiple repositories, streamlining code management and improving productivity; and Code Review Lens, which reviews the pull request raised for the provided repository.

Let us look at the Single Repo Code Lens by demonstrating an example.

For instance, the user can ask any question related to the project, like “Please review the code and suggest best practices, if any.” as shown below.

Consequently, this tool reviews the code and provides all the suggestions and steps required to follow best practices.

Conclusion

In this article, we discussed how MuleSoft’s architecture provides a comprehensive framework for integrating various systems and managing APIs. Its modular components, design tools, and management capabilities allow organizations to create a connected experience, ensuring that data and services are accessible and manageable across different platforms. By leveraging the Anypoint Platform, organizations can enhance agility, streamline operations, and improve customer experiences.
